Deploy a simple server using AWS + Terraform

Terraform is an Infrastructure as Code( IAC ) tool that lets you define both cloud and on-prem resources in human-readable configuration files, that you…

Dipankar Das··4 min read
Cover image for Deploy a simple server using AWS + Terraform
On this page (7)

What is Terraform? #

Terraform is an Infrastructure as Code(IAC) tool that lets you define both cloud and on-prem resources in human-readable configuration files, that you can version, reuse, and share.

The core Terraform workflow #

  • Write: You define resources, which may be across multiple cloud providers and services.
  • Plan: Terraform creates an execution plan describing the infrastructure it will create, update, or destroy based on the existing infrastructure and your configuration.
  • Apply: On approval, Terraform performs the proposed operations in the correct order, respecting any resource dependencies.

Link for the AWS resource definitions

How to setup AWS #

Setup Access Key #

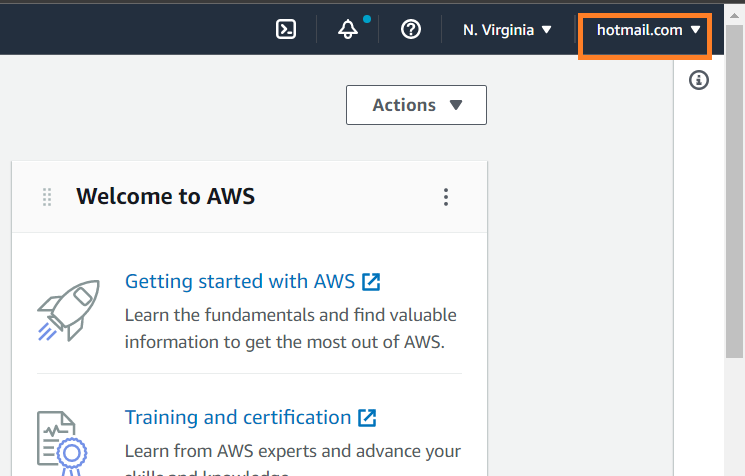

![01.png](/img/blog/deploy-a-simple-server-using-aws-terraform/e_ACFucj_.png align="left")

  1. To create one or more IAM users (console)
  2. Sign in to the AWS Management Console and open the IAM console at AWS IAM

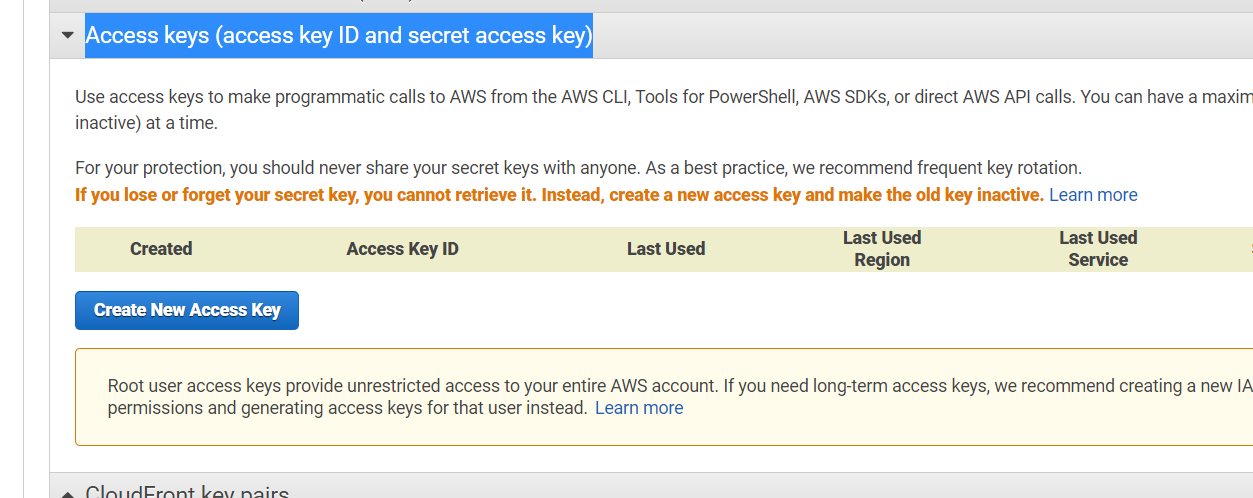

  3. expand the list Access keys (access key ID and secret access key) ![02.png](/img/blog/deploy-a-simple-server-using-aws-terraform/YXYd5Ngm3.png align="left")

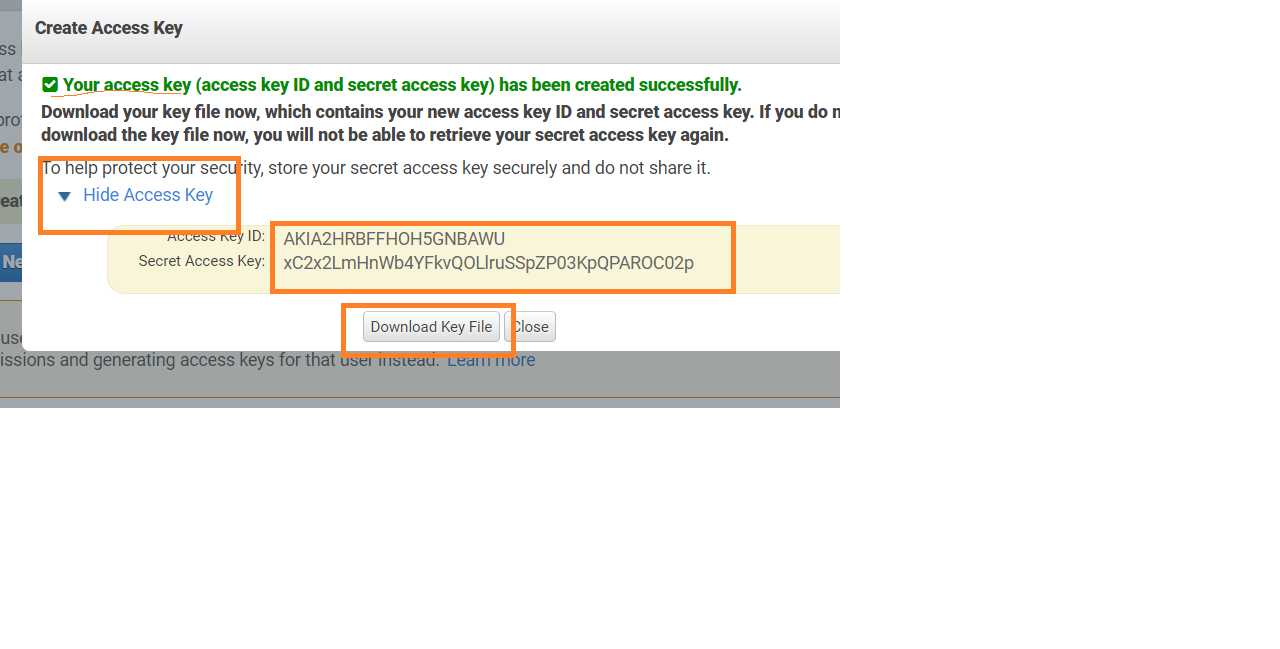

  4. Store the keys ![03.png](/img/blog/deploy-a-simple-server-using-aws-terraform/avb_Z7igl.png align="left")
  5. Installation of Terraform CLI Download Link

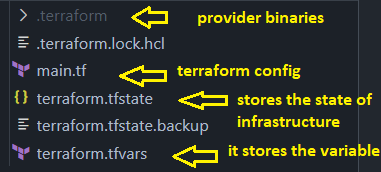

![04.png](/img/blog/deploy-a-simple-server-using-aws-terraform/hVJ2mLetO.png align="left")

Let's Learn by Doing #

Let us get right into it

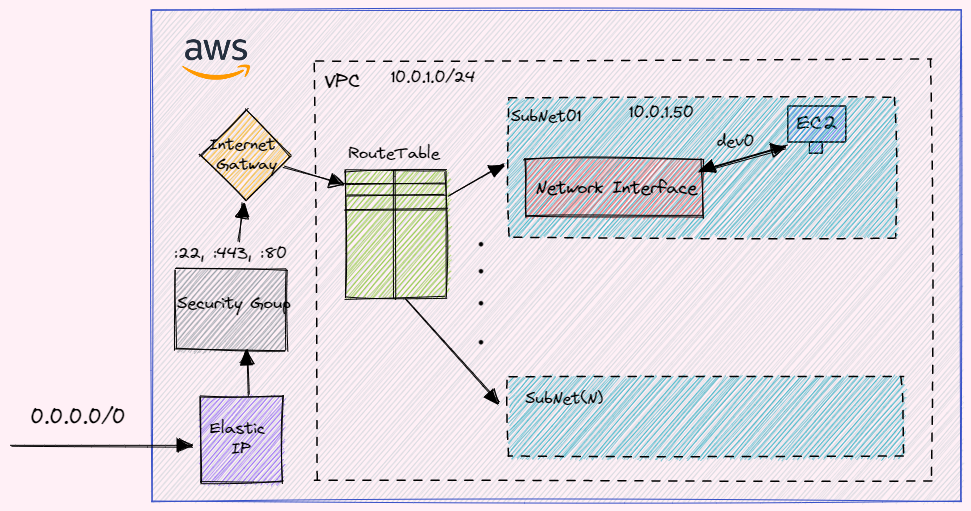

Resources to create a web server #

  1. EC2 - virtual machine on AWS
  2. VPC - Virtual Private Cloud is the isolation of the cloud for your resources to run. This is a logical way of separating of network
  3. Internet Gateway - to allow network traffic to reach inside vpc
  4. Subnet - It creates Network inside VPC, thus reducing the network hopping
  5. RouteTable - It stores the destination address where network traffic from your subnet or gateway is to be directed.
  6. Associate the RouteTable and Subnet - connect both of them
  7. Security Group - to Allow which port and from what Client IP address it came
  8. Network Interface - It allows communications between computers connected to the Subnet
  9. Elastic IP - it's a service by AWS which provides the dynamic IP during creation.

![image.png](/img/blog/deploy-a-simple-server-using-aws-terraform/JjVCuF6YI.png align="left")

Let's write the configuration files #

terraform.tfvars #

client-ip-access = {
  ssh = "0.0.0.0/0"
  https = "0.0.0.0/0"
}

main. tf #

provider "aws" {
  region  = "us-east-1"
  access_key = "<provider access key>"
  secret_key = "<provider secret key>"
}


# vpc
resource "aws_vpc" "prod-vpc" {
  cidr_block = "10.0.0.0/16"
  tags = {
    Name = "prod-vpc"
  }
}

variable "client-ip-access" {
  description = "ip address for the client to access the host"
  type = map(string)
}

# internet gateway
resource "aws_internet_gateway" "gw" {
  vpc_id = aws_vpc.prod-vpc.id

  tags = {
    Name = "prod-gateway"
  }
}

# route table
resource "aws_route_table" "prod-rt" {
  vpc_id = aws_vpc.prod-vpc.id

  route {
    cidr_block = "0.0.0.0/0" # any ip can access
    gateway_id = aws_internet_gateway.gw.id
  }

  route {
    ipv6_cidr_block        = "::/0"
    gateway_id = aws_internet_gateway.gw.id
  }

  tags = {
    Name = "prod-rt"
  }
}

# subnets
resource "aws_subnet" "prod-subnet" {
  vpc_id     = aws_vpc.prod-vpc.id
  cidr_block = "10.0.1.0/24"
  availability_zone = "us-east-1a"

  tags = {
    Name = "prod-subnet"
  }
}

# join subnets and route table by association
resource "aws_route_table_association" "a" {
  subnet_id      = aws_subnet.prod-subnet.id
  route_table_id = aws_route_table.prod-rt.id
}

# security
resource "aws_security_group" "allow_http" {
  name        = "allow-web-traffic"
  description = "Network traffic allowed"
  vpc_id      = aws_vpc.prod-vpc.id

  ingress {
    description      = "HTTPS"
    from_port        = 443
    to_port          = 443
    protocol         = "tcp"
    cidr_blocks      = ["0.0.0.0/0"] # so as to make anyone to reach the server
    # cidr_blocks      = [var.client-ip-access.https]
  }

  ingress {
    description      = "HTTP"
    from_port        = 80
    to_port          = 80
    protocol         = "tcp"
    cidr_blocks      = ["0.0.0.0/0"] # so as to make anyone to reach the server
  }

  ingress {
    description      = "SSH"
    from_port        = 22
    to_port          = 22
    protocol         = "tcp"
    cidr_blocks      = ["0.0.0.0/0"] # so as to make anyone to reach the server
    # cidr_blocks      = [var.client-ip-access.ssh]
  }

  egress {
    from_port        = 0
    to_port          = 0
    protocol         = "-1"
    cidr_blocks      = ["0.0.0.0/0"]
  }

  tags = {
    Name = "prod-security"
  }
}

# elastic ip
# It's recommended to denote that the AWS Instance or Elastic IP depends on the Internet Gateway. For example:
resource "aws_eip" "bar" {
  vpc = true

  associate_with_private_ip = "10.0.1.50"
  network_interface = aws_network_interface.prod-nic.id
  depends_on                = [aws_internet_gateway.gw]

  tags = {
    "Name" = "prod-eip"
  }
}

# network interface
resource "aws_network_interface" "prod-nic" {
  subnet_id       = aws_subnet.prod-subnet.id
  private_ips     = ["10.0.1.50"]
  security_groups = [aws_security_group.allow_http.id]

  tags = {
    "Name" = "prod-nic"
  }
}

# ec2
resource "aws_instance" "prod-ec2" {
  ami           = "ami-04505e74c0741db8d"
  instance_type = "t2.micro"
  availability_zone = "us-east-1a"

  network_interface {
    network_interface_id = aws_network_interface.prod-nic.id
    device_index         = 0
  }

  tags = {
    "Name" = "prod-ec2"
  }

  key_name = "terraform-access-ec2"

  user_data = <<-EOF
    #!/bin/bash
    sudo apt update -y
    sudo apt install nginx -y
    sudo systemctl start nginx
    EOF
}

output "server_public_ip" {
  value = aws_eip.bar.public_ip
}

Lets Deploy #

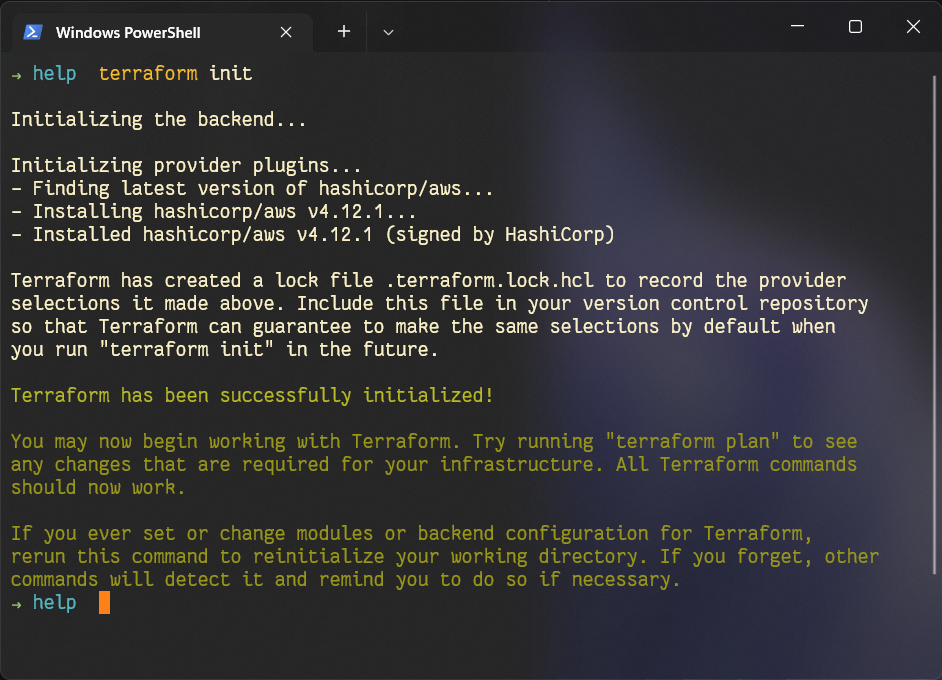

![out1.png](/img/blog/deploy-a-simple-server-using-aws-terraform/fPHP6aXqe.png align="left")

terraform init

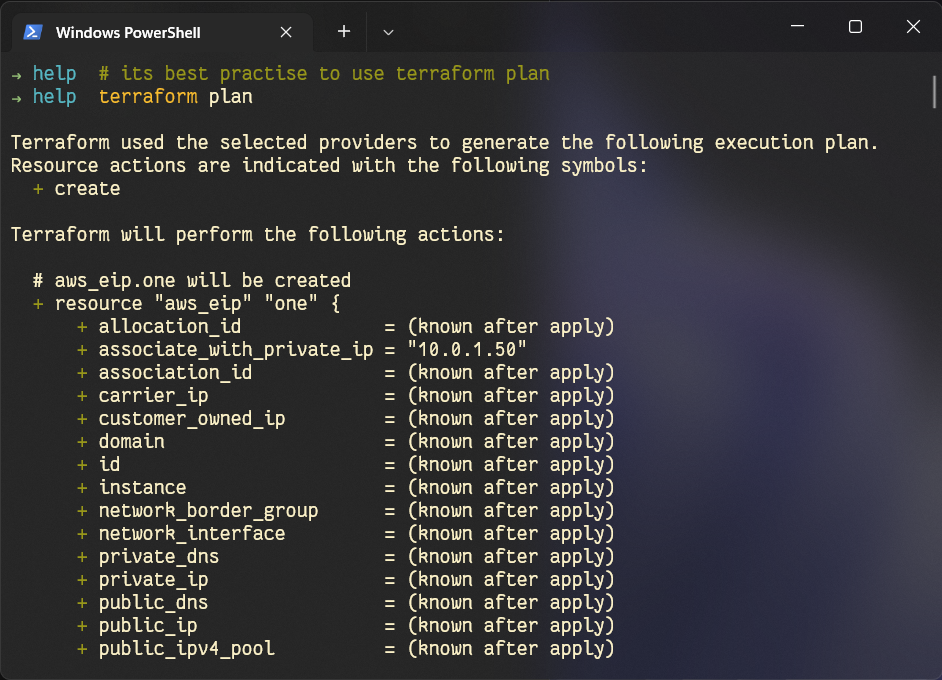

![out2.png](/img/blog/deploy-a-simple-server-using-aws-terraform/EJ0iHoqr2.png align="left")

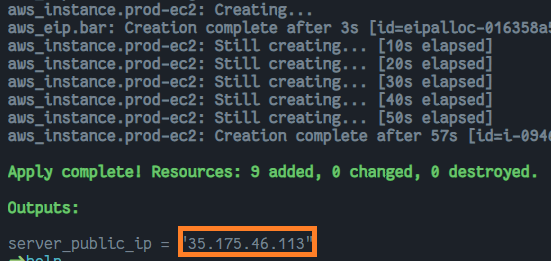

terraform apply

![ot3.png](/img/blog/deploy-a-simple-server-using-aws-terraform/XqveQnG20.png align="left")

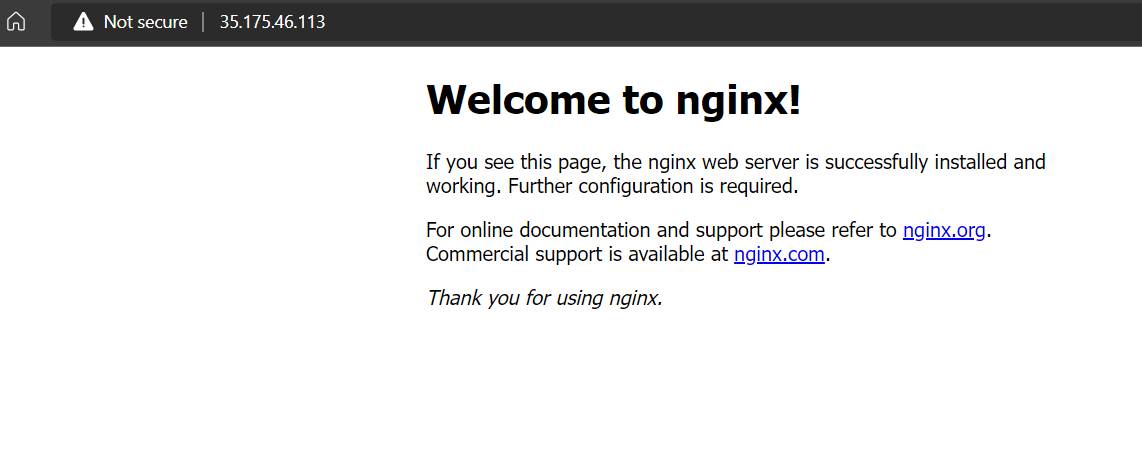

![oo2.png](/img/blog/deploy-a-simple-server-using-aws-terraform/7I2Uq5DLS.png align="left")

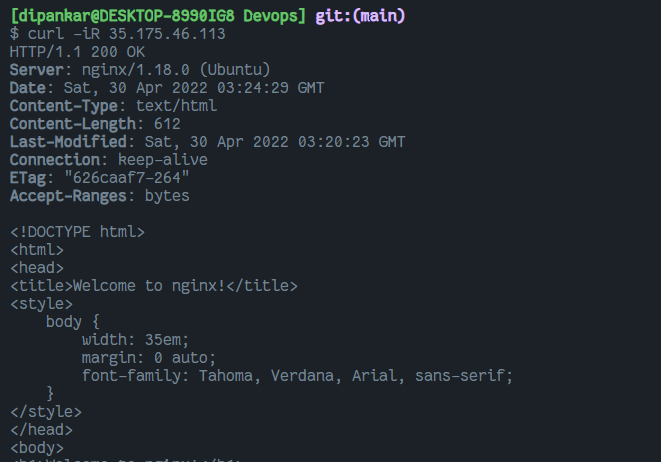

![ss.png](/img/blog/deploy-a-simple-server-using-aws-terraform/Luh3VKJlv.png align="left")

References #

Further read #

Blog on Terraform-tfvars

Hope it helps Happy coding👍🏼🥳
